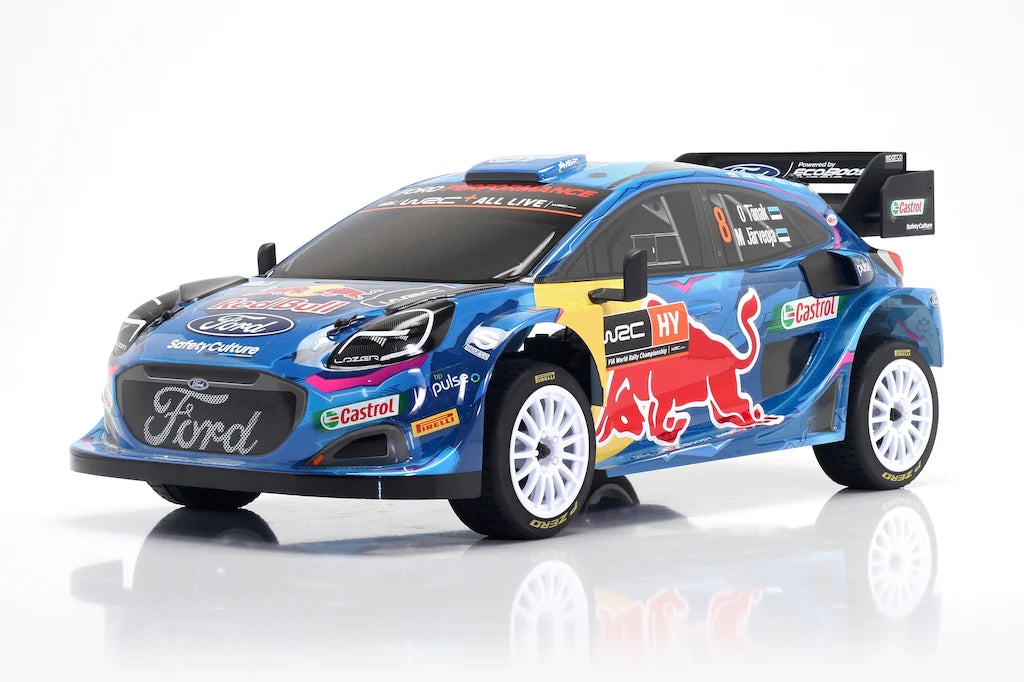

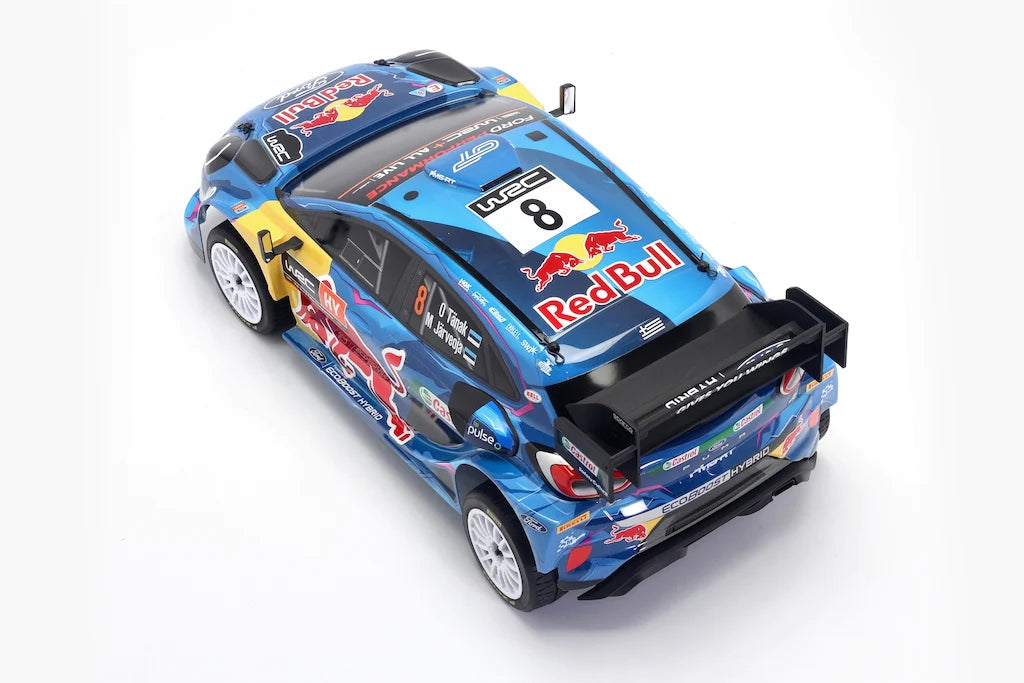

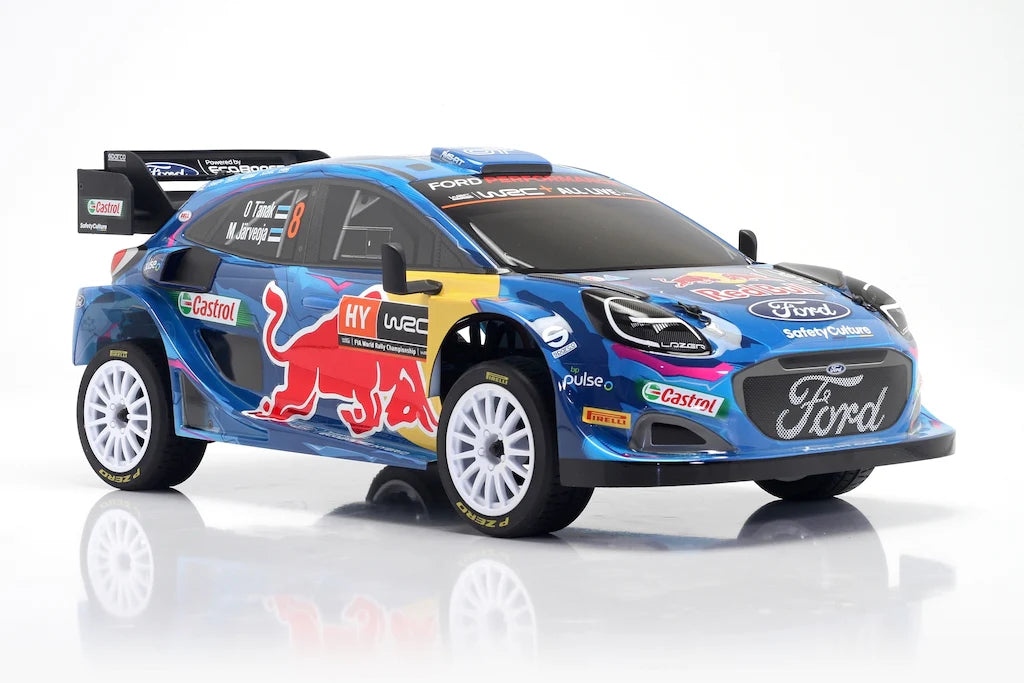

2023 M-SPORT FORD PUMA RALLY1. 1/8 RTR 4WD
**Battery and charger are not included**
**Recommend 2S - 3S Lipo Battery**
Item # 8999
Features:
* ESC
- 100A WP-MAX10-SCT-100A-3S RTR Sensorless with T-Plug (powered by HobbyWing).
- 2-3S Li-po (Lithium-polymer) or 6-9 Cell Ni-Mh Batteries.
- Water-Proof and Dust-Proof for All Weather.
- Super Internal Switch-Mode BEC with 6V / 7.4V for Usage with High Voltage Servo.
- Built-In Capacitor Module.
- Automatic Throttle Range Calibration.
- Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
- Over-Heat Protection and Throttle Signal Loss Protection.
- 5 Levels of acceleration/punch.
- 9 Levels of maximum brake force.
* Motor

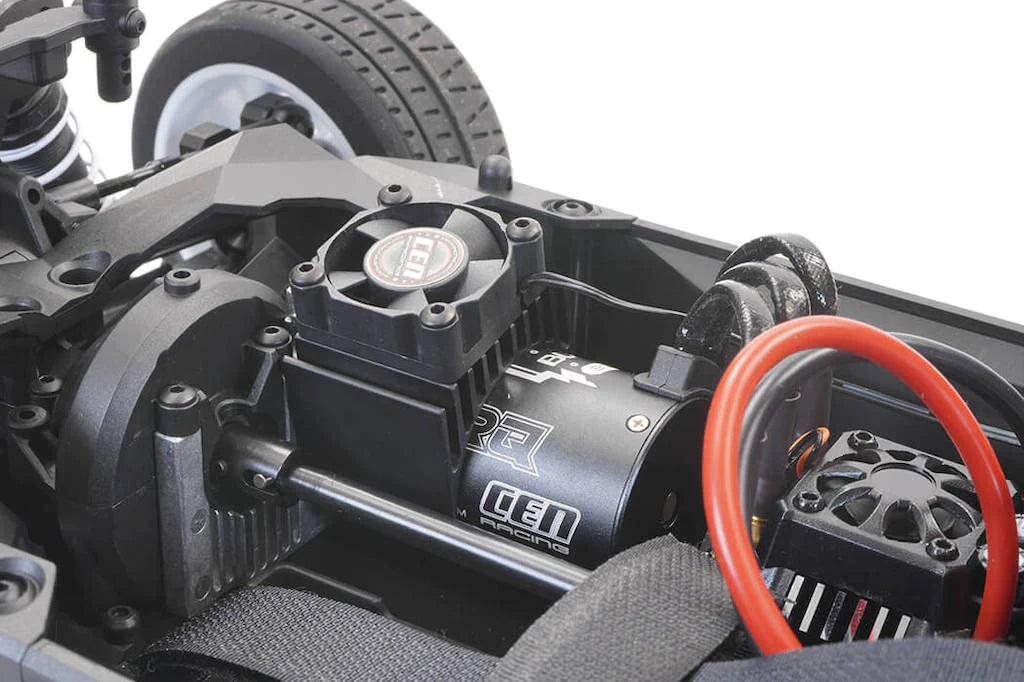

- CEN Racing High Performance 3658 3000KV Brushless Motor (Sensorless).
* Servo
- 12Kg Metal Gear Servo (By Savox).
4.8V - 0.26 sec/60° 10.0 kg-cm.
6.0V - 0.23 sec/60° 12.0 kg-cm.
With 25T Horn Gear Spline.
* Radio System
AMP-30 TX 3-Channel Transmitter.
Frequencies: 2.4GHz.
- Digital Trimming.
- Steering Dual-Rate (ST D/R) Adjustment.
- End Point Adjustment (EPA).
- Build in Failsafe.
Power Supply: 4 - AA Alkaline (Not Included).
AMP30 RX 3-Channel Receiver.
Frequency: 2.4GHz.
Power Supply: DC 4.8 ~ 6.0V.
Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).

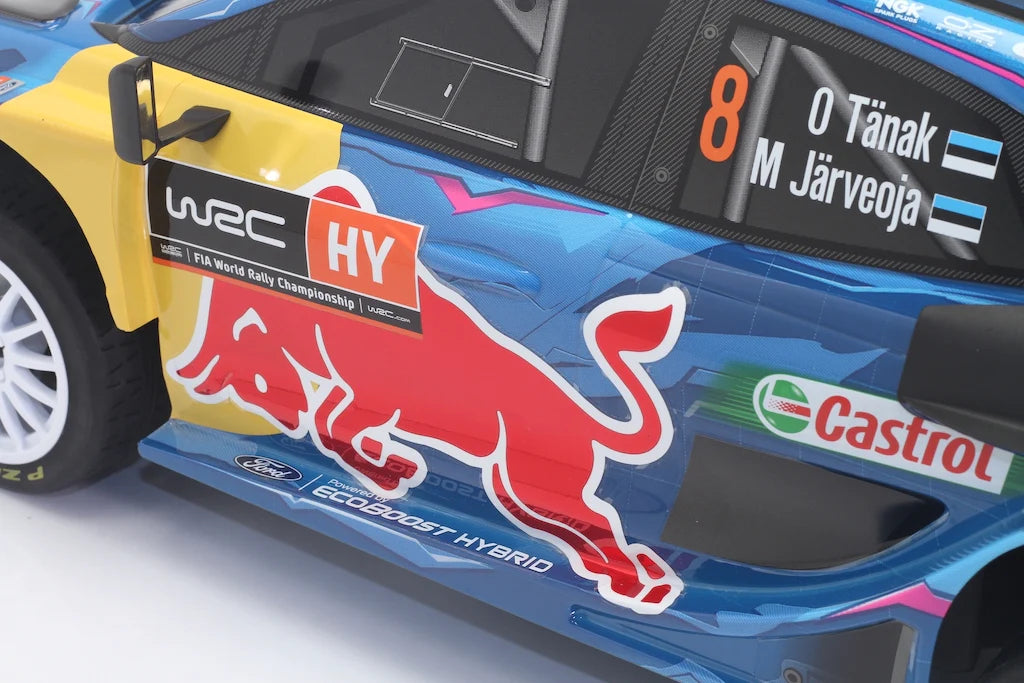

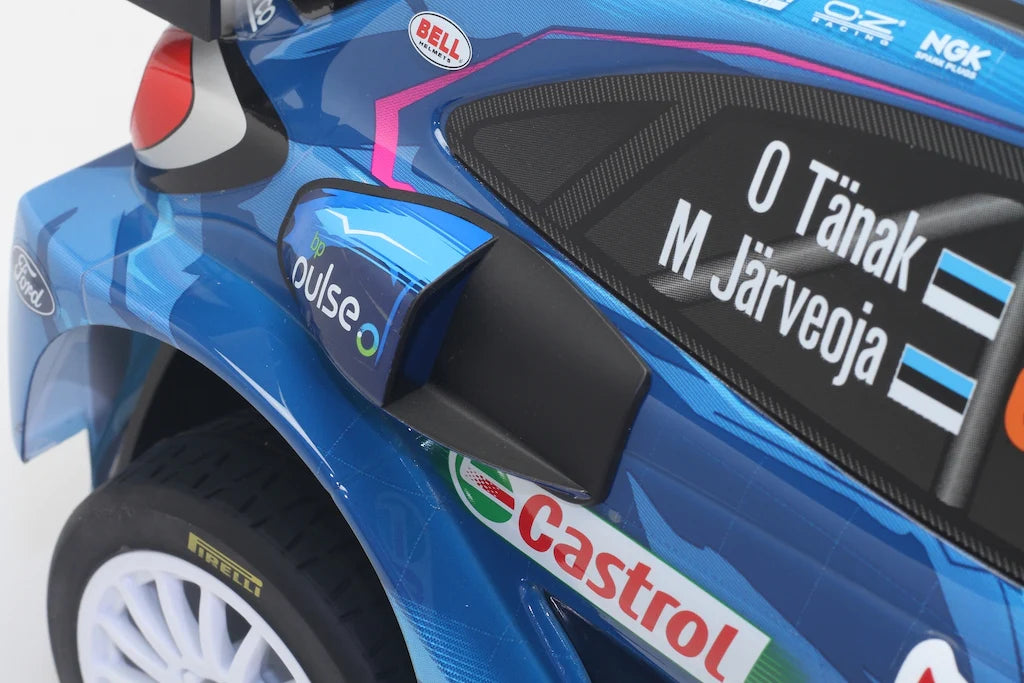

Body:

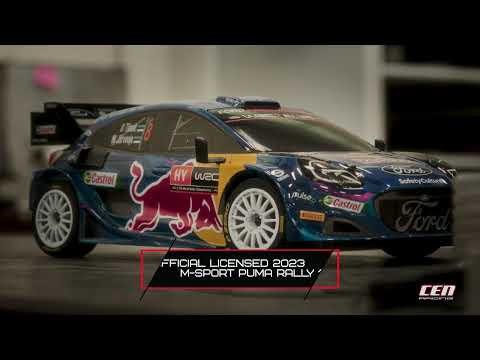

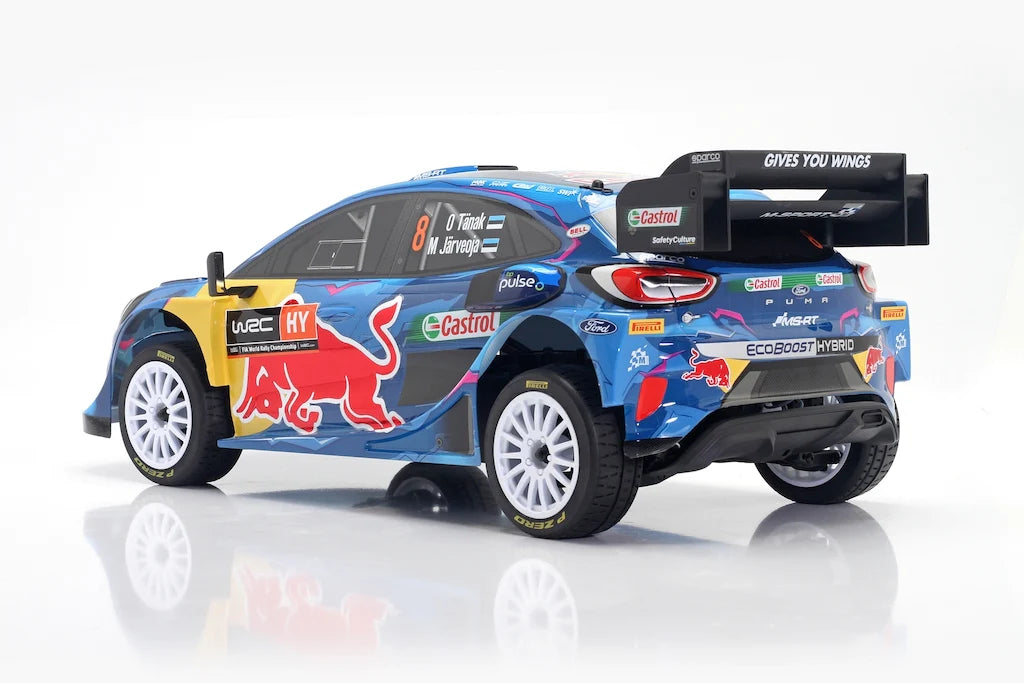

- Official Licensed 2023 M-Sport Ford Puma Rally 1 Edition

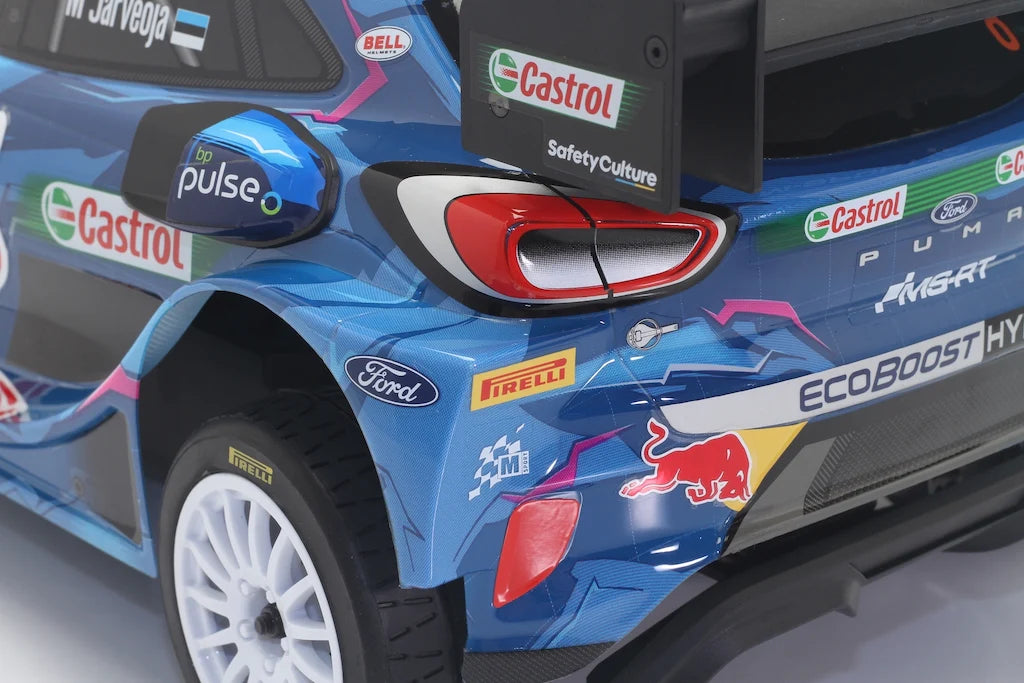

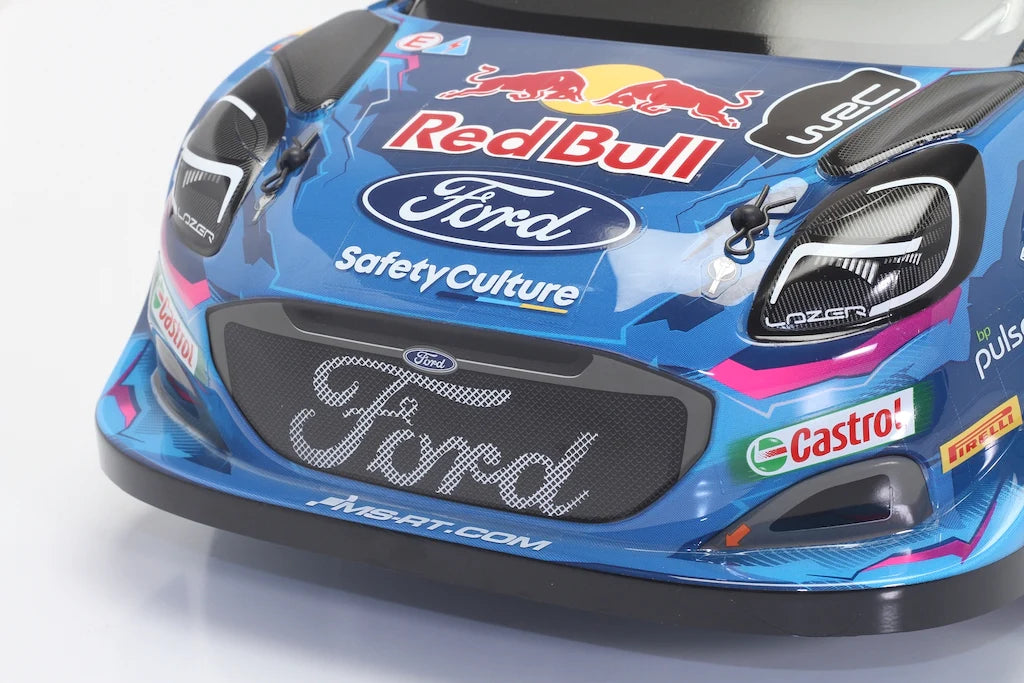

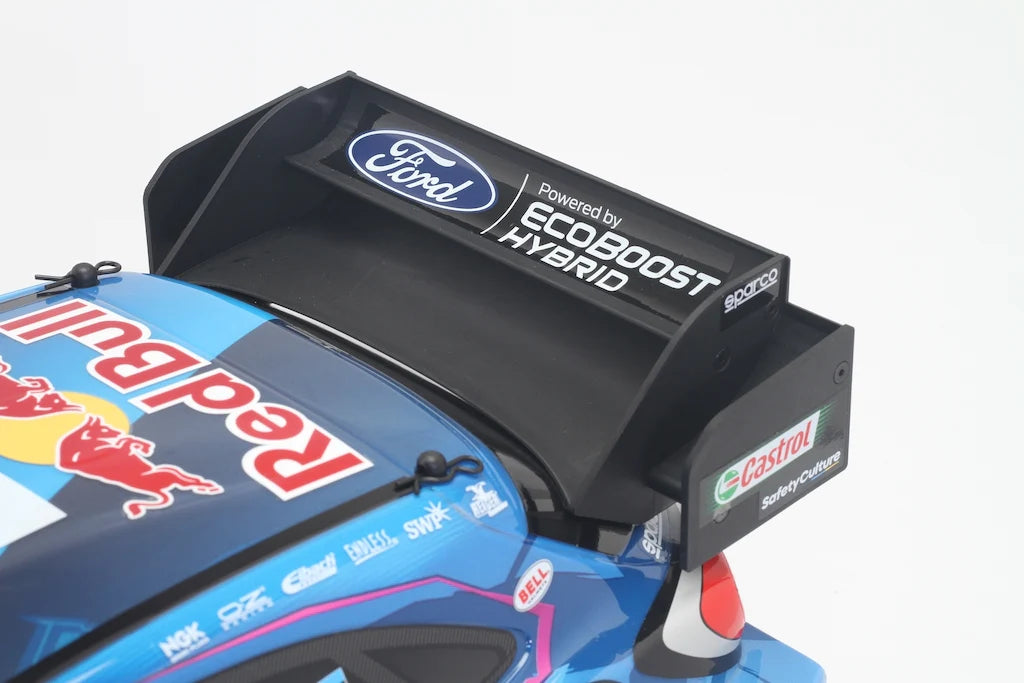

- Fully Detailed Injection-Molded Body Accessories Body Details
Size: Length 20.08inches (510mm) / Width 9.45 inches (240mm)

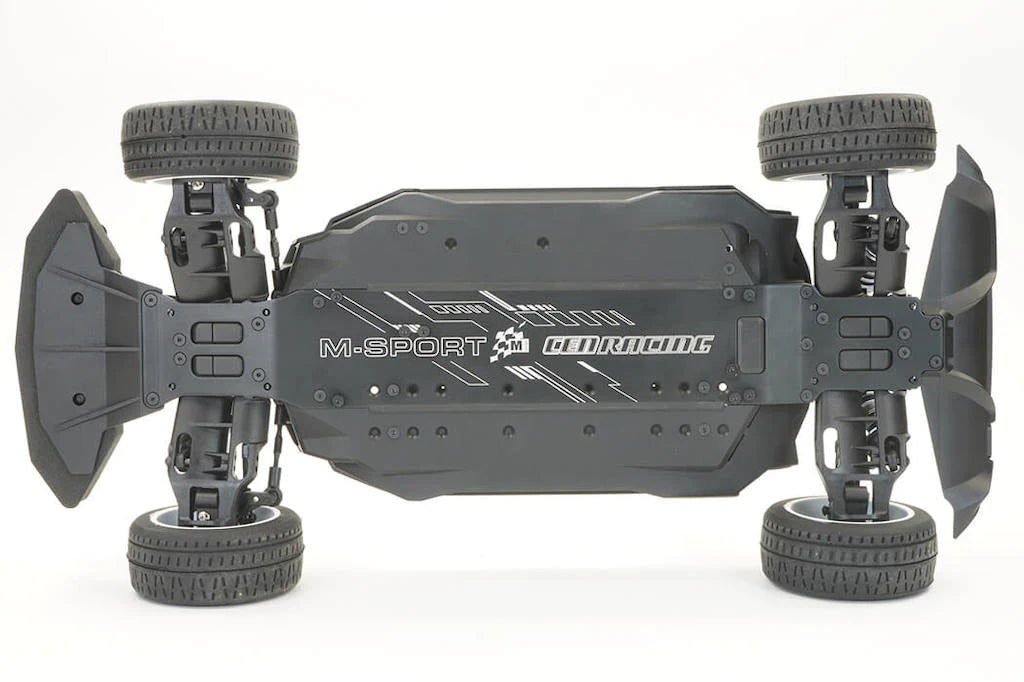

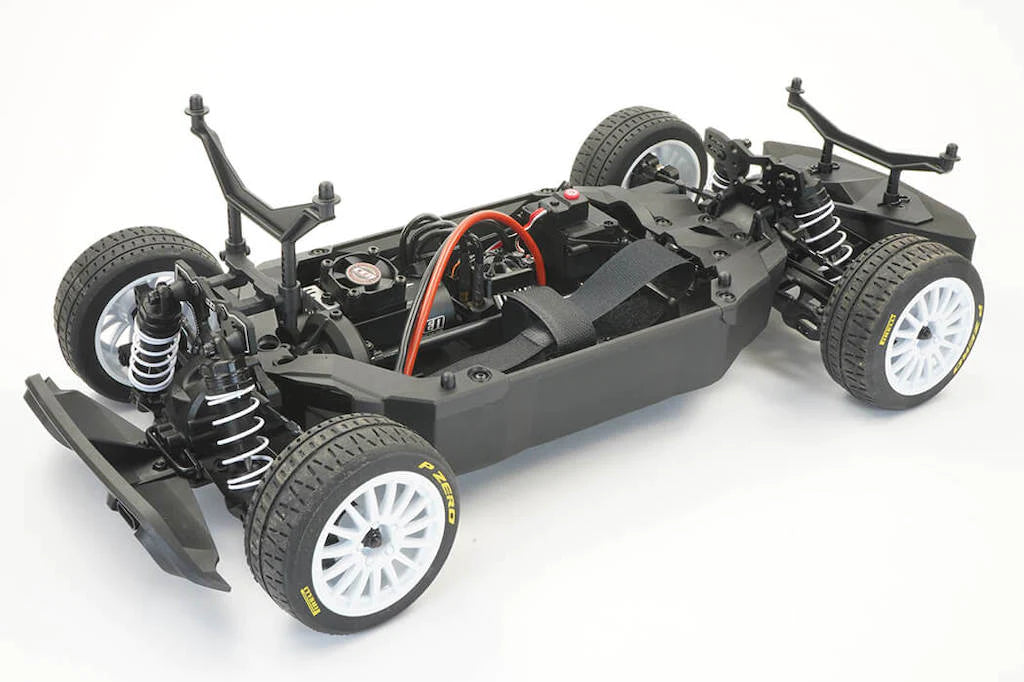

Chassis:
- 3mm Aluminum Chassis
- Front and Rear 3mm Aluminum Shock Towers
- Aluminum Arm Brace
- Full Precision Ball Bearing Support
- Wider Body Mount Positions for Better Support

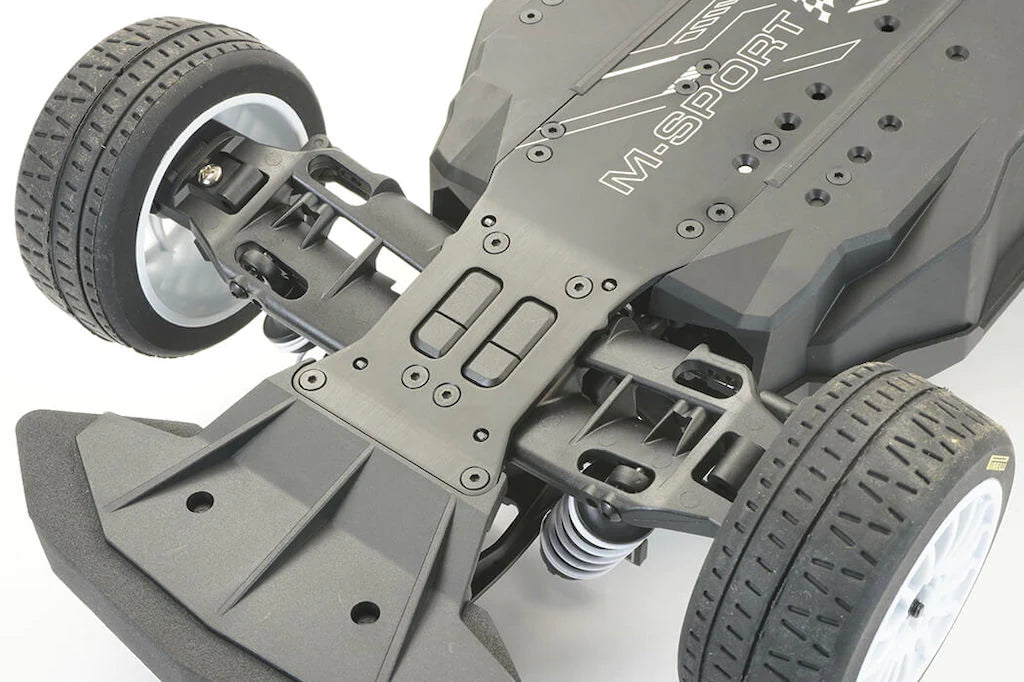

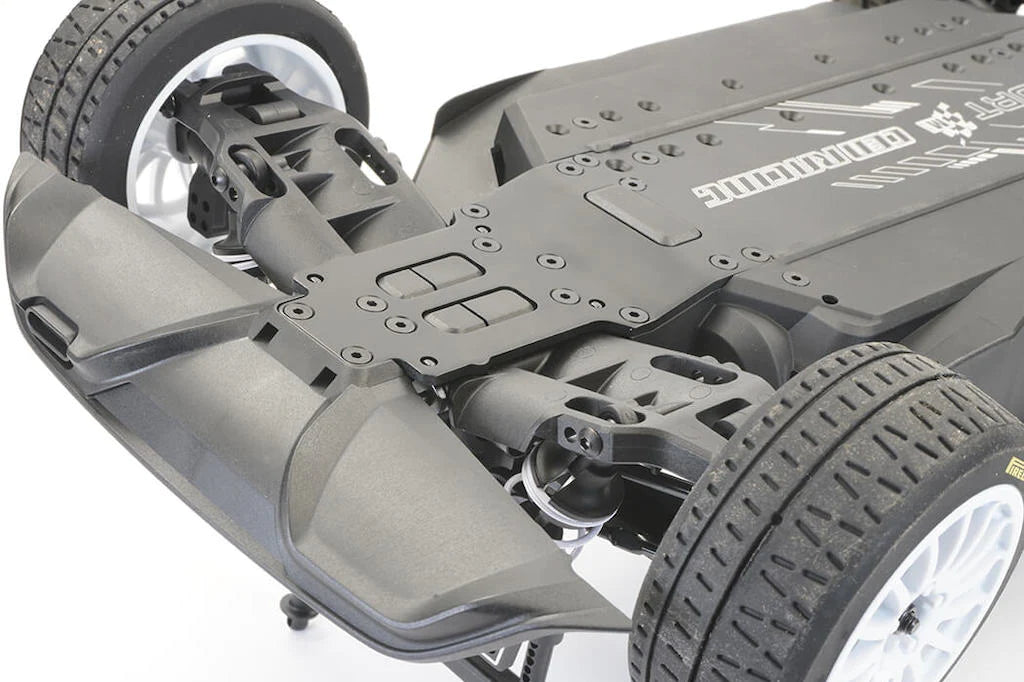

- Front Skid plate with Durable Foam Bumper

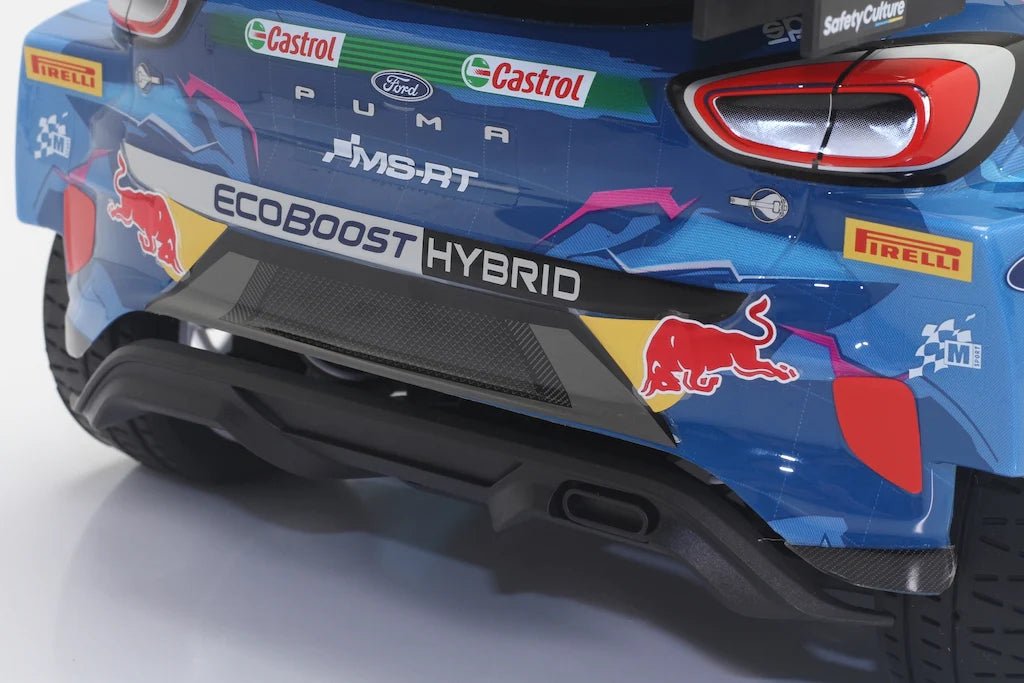

- Injection-Molded Rear Diffuser
- Easy Access Battery Tray
- Battery Tray Size 142mm x 48mm

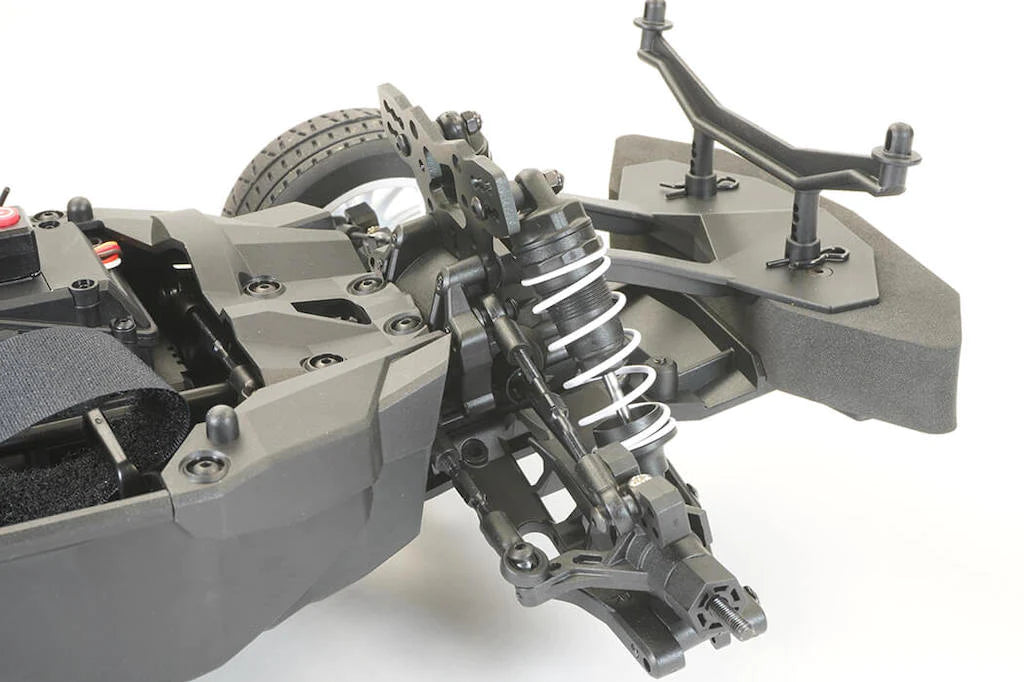

Suspension:
- Aerodynamic Lower Arm Suspension Design
- Big Bore Oil Filled Adjustable Coil Over Shocks
- 12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft
- Racing Spring
- Adjustable Turnbuckles
- Adjustable Wheelbase +/- 6mm
Gear Ratio:
- Spur / Pinion 46/14T 3.29:1
- Ring & Pinion 40/17T 2.35:1
Drivetrain:
- Full Time 4-Wheels Drive
- Center Shaft Drivetrain for more power transferred to the wheels
- Metal Transmission Gears
- Aluminum Adjustable Motor Mount
- Oil Filled Two Differential Drive System
- Center Direct Drive
- Hight Efficient Transmission System
- 6 Gear Bevel Gear Type Differential
- Front / Rear Harden Steel Dog Bone and outdrives
Wheel: High Impact & Light Weight WRC Racing Wheel 56 X 35.50 mm.
Tires: High Performance Racing Rubber Compound Tires 56 x 80 x 35.50 mm.
Specs:
Chassis Length: 18.11 inches (460mm)
Chassis Width: 9.06 inches (230mm)
Wheelbase: 11.80 inches (300mm)
Ground Clearance: 0.98 inches (25mm)
Weight: 5.51 lb. 2.5kg
